Under Vehicle Inspection Device

· The NUVI-03 under vehicle inspection device is a mutilfuctional 360opipe camera monitor system.

· It is integrated with a Full HD 1080P high-resolution camera and a 7-inch HD LCD color screen with sunshade cover, providing a clear view of the underside of vehicles entering and exiting secured areas.

· Supports expandable memory up to 64GB for storing video and image, enabling users to review data for analysis, comparison, and verification.

· 5000mAh battery enables long-duration continuous operation.

· The system utilizes two high-resolution cameras, allowing users to select the appropriate camera for different situation, making the inspection process more convenient and faster.

o Wheel tray camera: Equipped with 16 LED lights and 360o all-terrain wheels for easy movement and probe under the vehicle.

o Flexible pole camera: Equipped with 6 LED lights mounted on a Φ18mm, 0.5m-long bendable gooseneck pipe, allowing illumination in narrow and difficult to observe areas.

· Aplications: Vehicle bomb inspections, residential areas, garages, schools, checkpoints, airports, border areas, etc.

Wheel tray camera:

· Optical sensor: 1/2.5 cmos sony

· Total optical pixels: 5.0MP - 3200 (h) x 1536 (v)

· Cmos sensor size: 5.6mm (h) x 3.14mm (v)

· Led lights: 16 high-intensity leds

· Sensitivity: 0.08 lux / F1.2

· Lens & viewing angle: 3.6mm, f1.2 120°

· Hd video output interface: fdp-Linkiii

· Dimensions & weight: 37mm x 46mm, 35g

· Wheel of the tray: Omni-directional

· Protection standard: IP68

Flexible pole camera:

· Optical sensor: 1/3 cmos

· Total optical pixels: 5.0mp - 3200 (h) x 1536 (v)

· Cmos sensor size: 5.07mm (h) x 3.38mm (v)

· Led lights: 6 high-intensity leds

· Sensitivity: 0.2 lux / F1.2

· Lens & viewing angle: 0.5mm, f1.2, 120°

· Hd video output interface: fdp-Linkiii

· Dimensions & weight: 18mm x 28mm, 10g

· Flexible metal pipe length: 25cm

· Protection standard: IP68

Telescopic pole:

· Length: 58cm - 228cm

· Material: Aluminum alloy

Digital video recorder (DVR):

· 7-inch HD color screen with sunshade cover

· Video output: HDMI (1920x1080, 1280x720)

· Video compression format: H.264

· Video format: AVI

· Hd video input interface: FDP-LinkIII

· Image format: JPG - 5.0MP

· Storage: 64GB Micro SD Card

· Voltage: DC (7-24)V, USB DC 5V

· AC adapter: DC 12V 1A

· Battery capacity: Lithium-ion 5000mAh

· Operating time: >10 hours

· Charging time: 4-5 hours

· Dimensions: 177mm x 120mm x 20mm

· Weight: 350g

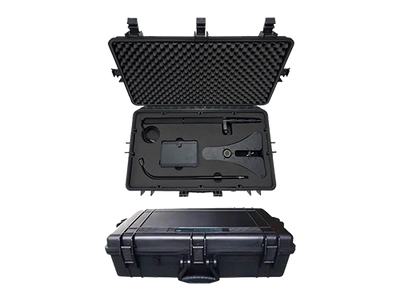

· 01 Digital video recorder

· 01 Wheel tray camera

· 01 Flexible pole camera

· 01 Telescopic pole

· 01 HDMI cable

· 01 USB cable

· 01 Adapter

· 01 User manual

· 01 Standard hard case
