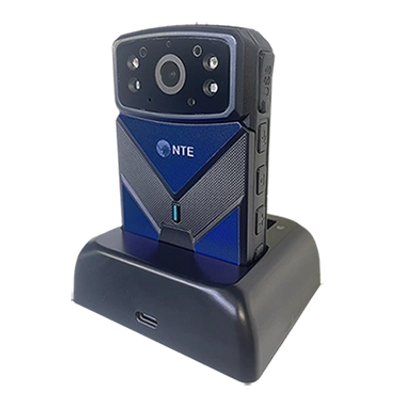

Body Worn Camera + 4G

· The body worn camera features compactness and sturdiness. 3.1-inch TFT LCD touch screen and functional buttons on both sides bring flexibility and user convenience

· Equipped with a high-performance image processor and Android 12 operating system, the device supports high-quality photo taking and video recording with resolutions up to HD 2K

· Directly transmit video to the data management center via 4G and Wi-Fi and locate the device on a map in real-time. The server is hosted in the user’s country to ensure national security and defense

· Support H.265/H.264 video compression

· Audio and video recording for evidence collection and monitoring, ensuring high security at a low cost

· Fixed internal storage cannot be removed with an expandable capacity of up to 512GB. Data is encrypted and securely protected

· The device is integrated with dual batteries (Main battery and backup battery). The backup battery supports continuous operation when replacing the main battery

· Quick recording with one button. Buttons are easy to use, even when wearing gloves

· Built-in IR light for night vision recording over long distances

· Two-way communication with the data management center

· Suitable for all weather conditions with IP68 waterproof and dustproof

· Integrated GPS for precise location tracking during evidence collection.

HARDWARE

· CPU Processor: MTK6769, 8-core (2*2.0GHz + 6*1.8GHz)

· Operating System: Android 12

· Camera:

   o Image sensor: SONY IMX335

   o Front Camera: 5MP, Rear Camera: 2MP

· Lens: 170° diagonal and 145° horizontal wide-angle, F2.0

· Storage:

   o RAM: 3GB, ROM: 32GB

   o MicroSD Card: 32GB (expanded up to 512GB)

· IR light: 2, supports night vision recording

· IR distance: Over 10m

· IR switch: Automatic/Manual

· Laser light locates the target when not looking at the screen

· White LED light can be turned on/off and used as a flashlight at night

· Warning Light: Two flashing blue and red lights

· Indicator: Green for standby, red for visual and audio recording

· GPS: Built-in GPS, GPS+AGPS

· Microphone: 1 front microphone, 1 bottom noise reduction microphone

· Communication port: USB Type-C

· Clip: 360º rotating clip

· Power supply: 3200mAh lithium main battery

· Backup battery: 80mAh lithium battery supporting continuous operation when replacing the main battery

· Working Time: Over 10 hours

· Charging Time: 3 hours

· Weight: 166g

· Dimensions: 99.5mm x 59.6mm x 20.7mm

· Operating Temperature: -30ºC to 70ºC

· Protective housing: IP68, waterproof and dustproof, 2 meters drop resistance.

TAKING PHOTOS AND VIDEOS

· Video resolution and frame rate:

   o Resolution: 2560x1440, 2340x1296, 1920x1080, 1280x720, 720x480, 480x360

   o Frame rate (FPS): 2, 5, 8, 10, 15, 20, 25, 30

· Photo Resolution:

   o Front Camera: 2560x1440, 1600x1200, 1440x1088, 1280x960, 960x720, 640x480

   o Rear Camera: 2560x1920, 1920x1080, 1440x1088, 1280x960, 1080x720, 960x720, 640x480

· Video compression: H.265 / H.264

· Video encryption: AES256

· Video format: MP4.

· Image format: JPG.

· Audio format: MP3, MP4, WAV.

· Snapshot: Capture images while recording video.

· Recording duration: 5/10/15/20/25/30 minutes

· Pre-recording: 0/30/60/120/180 seconds

· Post-recording: 0/5/10/15/25/35/45/60/120/ 180 seconds.

INTERFACE

· Display: 3.1-inch color TFT LCD touchscreen

· Languages: English, Vietnamese.

· Display functions: User ID, device ID, date and time, GPS coordinates embedded in videos and images.

CONNECTIVITY

· Wireless connectivity: 4G, Wi-Fi, Bluetooth

   o 4G LTE FDD: GSM (3, 5, 8), WCDMA (1, 4, 5, 8), TD (34, 39), FDD-LTE (1, 3, 4, 5, 7, 8, 20, 28), TDD (38, 39, 40, 41)

   o Wifi: 802.11b/g/n/ac, AP/STA

· Bluetooth: Bluetooth 4.0, tương thích Bluetooth 4.1

· Directly transmit video to the data management center via 4G and Wi-Fi and locate the device on a map in real-time. The server is hosted in the user’s country to ensure national security and defense.

· 01 Body worn camera

· 02 3200mAh Lithium batteries

· 01 Clip

· 01 cable & 01 adapter

· 01 Charging dock

· 01 User manual

· 01 Carry case

· 01 Account to connect with data management software.

DATA MANAGEMENT SOFTWARE

· Connect all types of cameras and recorders with the ONVIF standard

· Video storage management

· Live stream viewing

· Video search and playback

· Map based monitoring

· Two-way communication between the command center and camera

· Statistical reporting

· System configuration management

· Software language: Vietnamese

· Support web-based operation

· Expandable connectivity with other devices: car dash camera, motorcycle dash camera, and mobile traffic enforcement cameras, etc (Supports RTSP streaming and H.264 codec).
